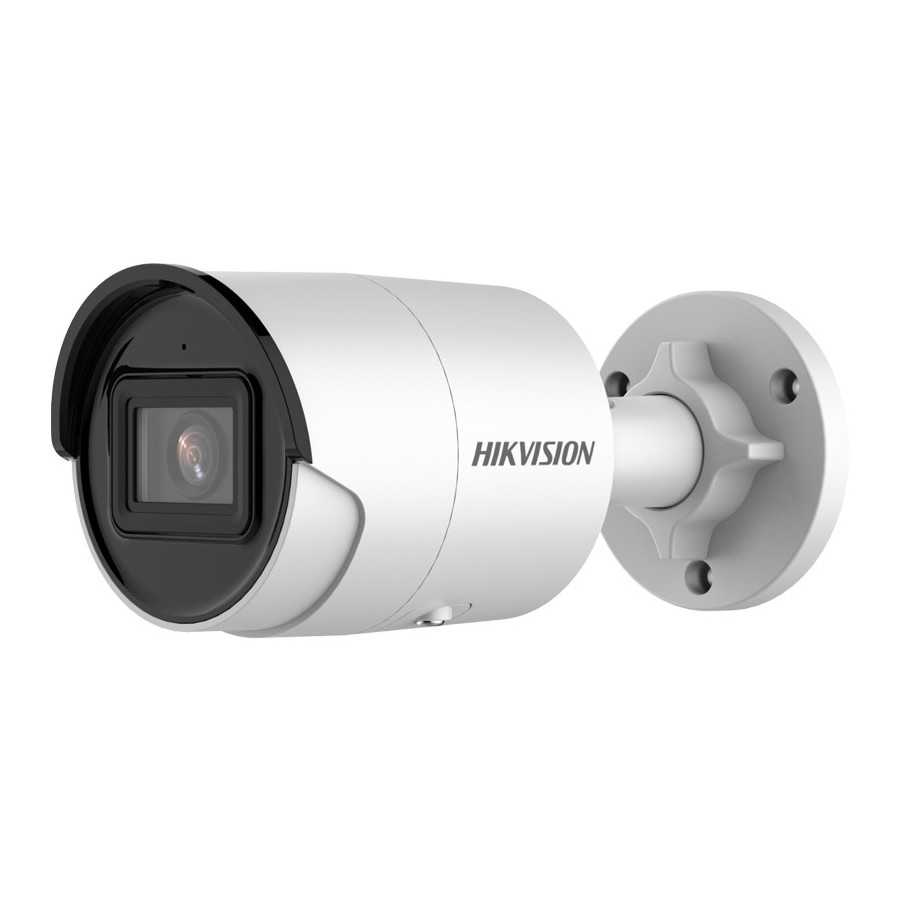

Camara Ip Hikvision 2cd2026g2-iu / 2.8mm 2mp

Name: Camara Ip Hikvision 2cd2026g2-iu / 2.8mm 2mp
Brand: Hikvision
SKU: A19-211-2006
Rating: 5 (1 reviews)

Referencia: A19-211-2006

Cámara ip Bullet AcuSense
Resolución 2 MP
Excelente en condiciones de poca luz DarkFighter
Compresión H.265 +
Imágenes nítidas contra una luz de fondo intensa WDR real de 120 dB
Clasificación de personas y vehículos basada en el aprendizaje profundo
micrófono incorporado
Resistente al agua y al polvo (IP67)

Agregar a tus favoritos Agregar a comparar

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Wide Dynamic Range120 dB
Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Slow ShutterYes
P/NP/N

Lens
Lens TypeFixed focal lens, 2.8. 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°

4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°

6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
ApertureF1.4
Lens MountM12
Iris TypeFixed

DORI
DORI
2.8 mm: D: 44.3 m, O: 17.6 m, R: 8.9 m, I: 4.4 m

4 mm: D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m

6 mm: D: 86.9 m, O: 34.5 m, R: 17.4 m, I: 8.7 m

Illuminator
IR RangeUp to 40 m
IR Wavelength850 nm
Smart Supplement LightYes
Supplement Light TypeIR

Video
Max. Resolution
1920 × 1080
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

SNR≥ 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Built-In Microphone-U: Yes
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Hardware ResetYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventScene change detection

Deep Learning Function
Face CaptureYes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification

General
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection

PoE: 802.3af, Class 3
Power Consumption And Current
12 VDC, 0.5 A, max. 6.0 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.0 W
Power InterfaceØ5.5 mm coaxial power plug
Camera MaterialADC12
Camera DimensionØ70 mm × 161.7 mm (2.8" × 6.4")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Camera WeightApprox. 480 g (1.1 lb.)
With Package WeightApprox. 719 g (1.6 lb.)
Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Web Client Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software ResetYes
Firmware VersionV5.5.113

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Detalles del producto

Referencia A19-211-2006

Ficha Tecnica

Material de Cámara: Metal
Conexión: IP
Resolución de Cámara: 2MP (1080p)
IR: 40M
Tipo de cámara: Bullet
Extras: Acusense
DarkFighter
Microfono

Referencias específicas

ean13: 6941264039174

Comparación Rapida

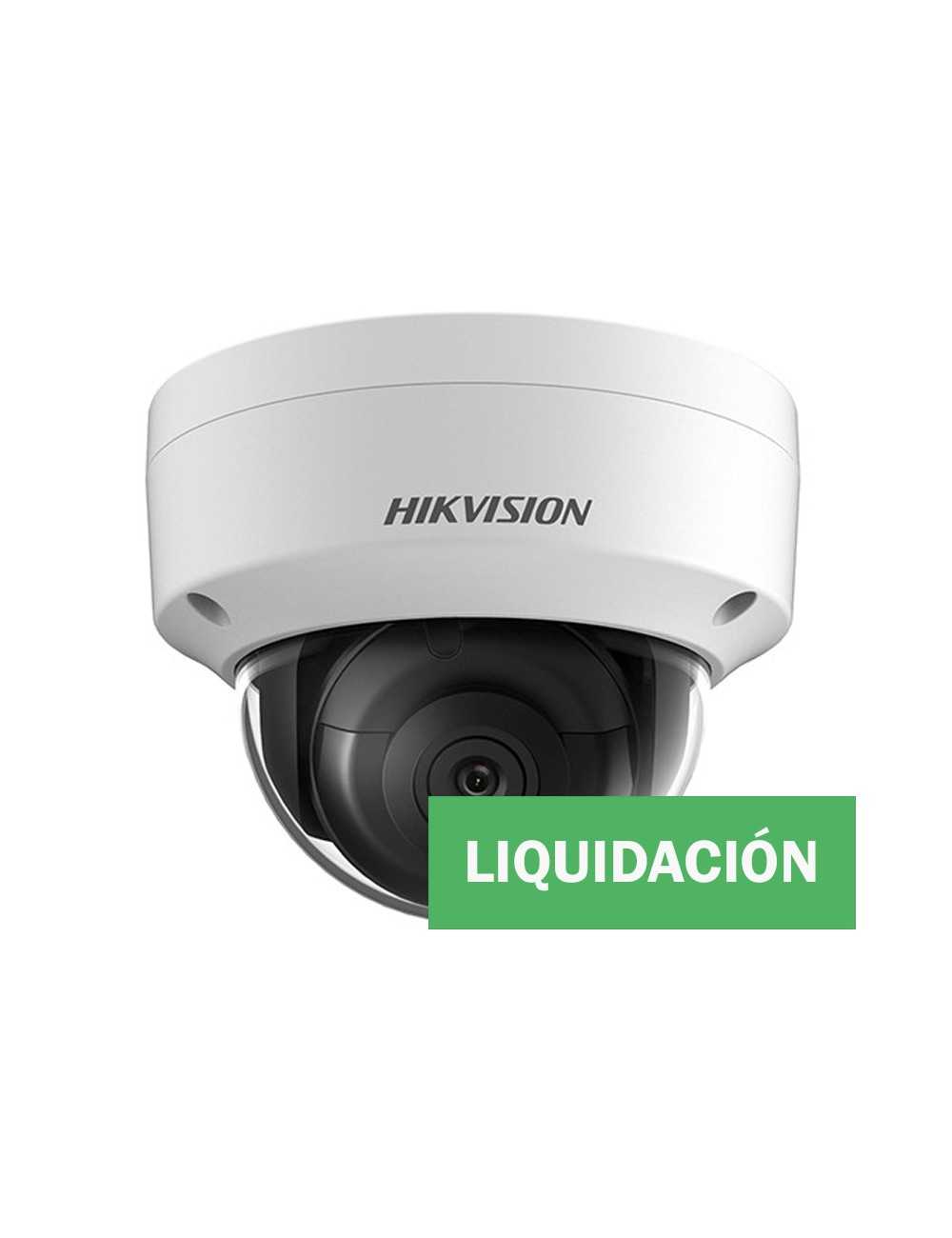

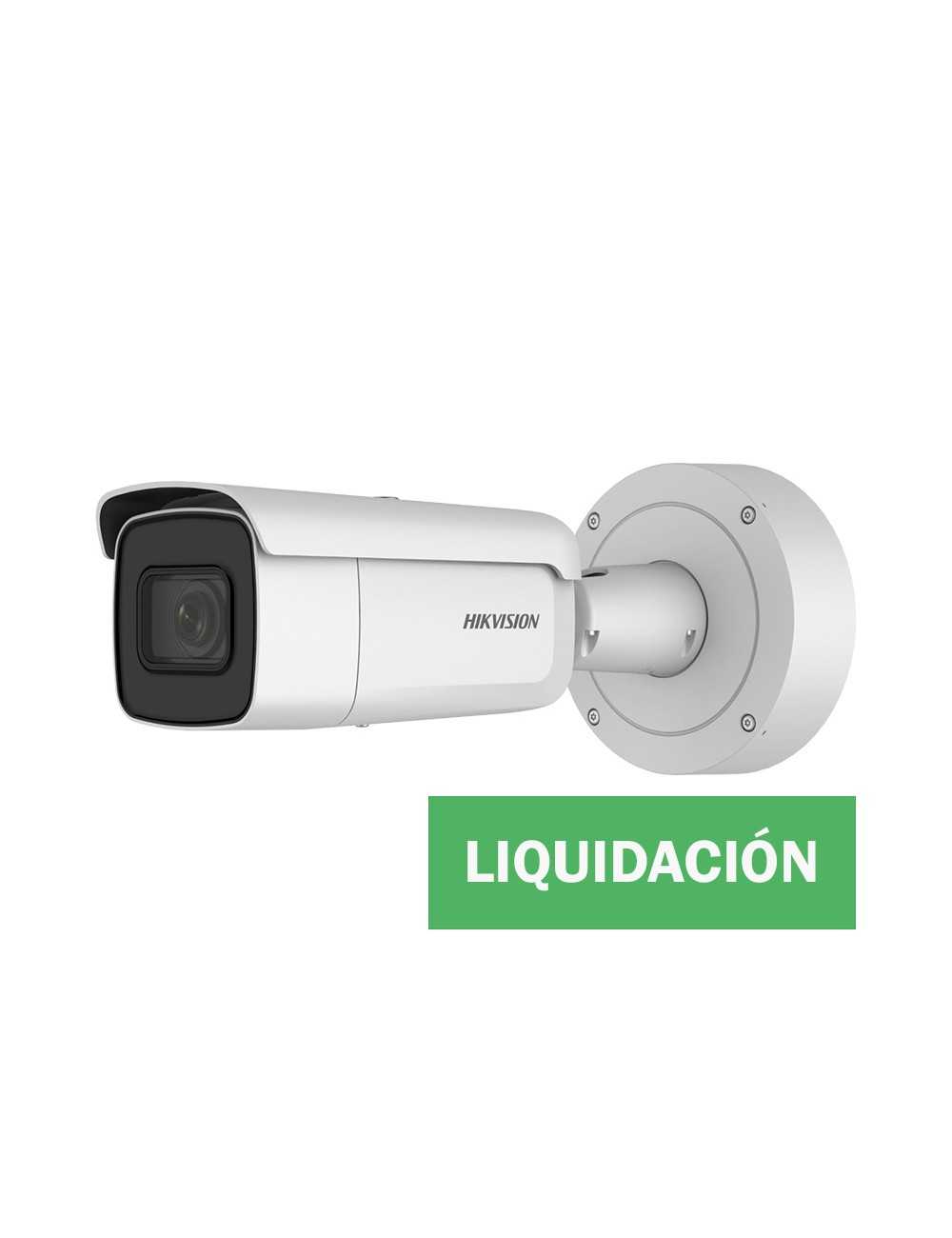

Producto	Camara Ip Hikvision 2cd2026g2-iu / 2.8mm 2mp	Camara Ip Hikvision 2cd2625fwd-izs / 2mp Varif Motoriz Darkfigther	Camara Domo Ip Hikvision 2cd2725fwd-izs / 2mp Vf Motoriz Darkfigther	Camara Ip Hikvision 2cd2046g2-i 2.8mm 4mp Acusense Darkf Led
Cantidad
Precio
Descripción	Cámara ip Bullet AcuSense Resolución 2 MP Excelente en condiciones de poca luz DarkFighter Compresión H.265 + Imágenes nítidas contra una luz de fondo intensa WDR real de 120 dB Clasificación de personas y vehículos basada en el aprendizaje profundo micrófono incorporado Resistente al agua y al polvo (IP67)	Camara Bullet IP Hikvision de hasta 2.0Mpx, Optica varifocal 2,8-12mm, EasyIP 3.0 Sensor CMOS 1/2.8", Ultra Low Light Darkfighter. Hasta 2Mpx de resolucion (1920x1080)25IPS. Alcance IR hasta 50m. H.265, H.265+, H.264+, H.264. 0,005 lux color F1.2 AGC ON. WDR (Rango dinamico expandido) de 120dB. BLC / 3D DNR / ROI. 4 analisis de comportamiento 12VDC 1.2A, Nivel de proteccion: IP67 / IK10, POE (802.3at), F.A. No incluida	Camara IP Domo 2mp, 1 / 2.8 “Barrido progresivo CMOS H.265 + / H.265 / H.264 + / H.264 / MJPEG Desarrollado por la tecnología Darkfighter, Color: 0.005 lux @ (F1.2, AGC ON); 25 fps / 30 fps (1920 × 1080); Lente VF motorizada de 2.8 ~ 12 mm; 120dB WDR VCA 3 secuencias 3D DNR BLC ICR EXIR 2.0/ 30m metálica IP67 (exterior), IK10 DC12V y PoE Ranura micro SD / SDHC / SDXC incorporada Servicio en la nube HIK-Connect	Cámara de red bullet fija AcuSense de 4 MP Imágenes de alta calidad con resolución de 4 MP Excelente rendimiento en condiciones de poca luz con tecnología impulsada por DarkFighter Imágenes nítidas contra una luz de fondo intensa gracias a la tecnología WDR real de 120 dB Tecnología de compresión eficiente H.265 + Centrarse en la clasificación de objetivos humanos y de vehículos basada en el aprendizaje profundo Micrófono incorporado para seguridad automática en tiempo real (-U) Resistente al agua y al polvo (IP67)
Material de Cámara	Metal	Metal	Metal	Metal
Conexión	IP	IP	IP	IP
Resolución de Cámara	2MP (1080p)	2MP (1080p)	2MP (1080p)	4 MP
IR	40M	50M	30M	40M
Tipo de cámara	Bullet	Bullet	Domo	Bullet
Extras	Acusense DarkFighter Microfono	DarkFighter	DarkFighter	Acusense DarkFighter Microfono
Liquidación		Liquidación	Liquidación
